E319D 391-9433 Excavator Hydraulic Pump SBS80 OEM Piston Pump
Product description
| Part name | Hydraulic pump |
| Pump model | SBS80 |
| Machine model | E319D |
| Warranty | 6 months |
| Appliion | Crawler excavator |
| Quality | Aftermarket |
| MOQ | 1 PCS |
| Condition | Brand new |

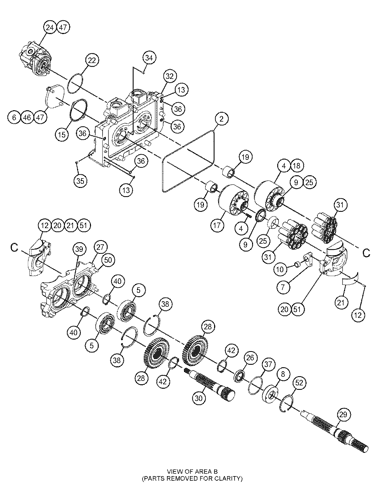

| Pos. | Part No | Qty | Parts name | Comments |
| 1. | 4B-4158 | [2] | SCREW-DRIVE (NO 4X0.25-IN) | |
| 2. | 5P-2545 | [1] | SEAL-O-RING | |
| 3. | 111-9916 Y | [1] | VALVE GP-SOLENOID (PRESSURE REDUCING) | |
| 4. | 165-2799 | [18] | SPRING | |
| 5. | 165-2801 | [2] | BEARING-ROLLER | |
| 6. | 165-2804 | [1] | FLANGE | |
| 7. | 165-2805 | [2] | BLOCK | |
| 8. | 165-3853 | [1] | COVER | |
| 9. | 176-8131 | [2] | SPACER-SPECIAL | |
| 10. | 176-8132 | [2] | BEARING | |
| 11. | 190-4896 | [2] | PLUG | |
| 12. | 192-0573 | [4] | PIN-DOWEL | |
| 13. | 199-0518 | [2] | SEAL-O-RING | |
| 14. | 207-2985 | [2] | ORIFICE | |
| 15. | 225-6216 | [1] | GASKET | |
| 16. | 267-1624 Y | [2] | HEAD GP-PUMP | |
| 17. | 267-1630 | [1] | BARREL AS-DRIVE | |
| 18. | 267-1631 | [1] | BARREL AS-DRIVE | |
| 19. | 267-8084 | [2] | BEARING-NEEDLE | |
| 20. | 268-6263 | [2] | CAM | |
| 21. | 269-2433 | [4] | BEARING-CRADLE | |
| 22. | 273-8315 | [1] | SEAL-O-RING | |
| 23. | 282-9192 | [1] | -FLANGE | |
| 24. | 341-2860 Y | [1] | PUMP GP-GEAR | |
| 25. | 353-5829 | [2] | GUIDE-BALL | |
| 26. | 353-5837 | [1] | SEAL-LIP TYPE | |
| 27. | 368-9994 | [1] | PLATE | |
| 28. | 368-9995 | [2] | GEAR (47-TEETH) | |
| 29. | 368-9996 | [1] | SHAFT-DRIVE | |
| 30. | 368-9997 | [1] | SHAFT-DRIVEN | |
| 31. | 379-6426 | [2] | PISTON AS | |
| | 267-1633 | [9] | PISTON AS | |
| | 353-5825 | [1] | RETAINER | |
| 32. | 391-9438 | [1] | BLOCK-PORT | |
| 33. | | [1] | NAMEPLATE |
| 34. | 094-1875 | [6] | DOWEL | |
| 35. | 094-1882 | [13] | PLUG | |
| 36. | 189-9763 | [4] | SEAL-O-RING | |
| 37. | 1H-7339 | [1] | SEAL-O-RING | |
| 38. | 1J-6472 | [2] | RING-RETAINING | |
| 39. | 2Y-5578 | [4] | PIN | |
| 40. | 388-8368 | [2] | RING-RETAINING | |
| 41. | 3J-1907 | [2] | SEAL-O-RING | |
| 42. | 6V-8757 | [2] | RING-RETAINING | |
| 43. | 7I-2272 M | [2] | BOLT (M5X0.8X12-MM) | |
| 44. | 7X-2553 M | [5] | BOLT (M16X2X40-MM) | |
| 45. | 7X-2556 M | [1] | BOLT (M16X2X100-MM) | |
| 46. | 8T-4121 | [2] | WASHER-HARD (11X21X2.5-MM THK) | |
| 47. | 8T-4136 M | [4] | BOLT (M10X1.5X25-MM) | |
| 48. | 8T-4139 M | [8] | BOLT (M12X1.75X30-MM) | |
| 49. | 8T-4140 M | [2] | BOLT (M16X2X60-MM) | |
| 50. | 8T-4185 M | [4] | BOLT (M10X1.5X50-MM) | |
| 51. | 8T-7547 M | [4] | BOLT (M8X1.25X30-MM) | |
| 52. | 8T-9599 | [1] | RING-RETAINING | |
| 53. | 9S-4191 | [2] | PLUG (9/16-18-THD) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
