Belparts Control Valve for Hitachi ZX350LC-3 Excavator main Control 625137

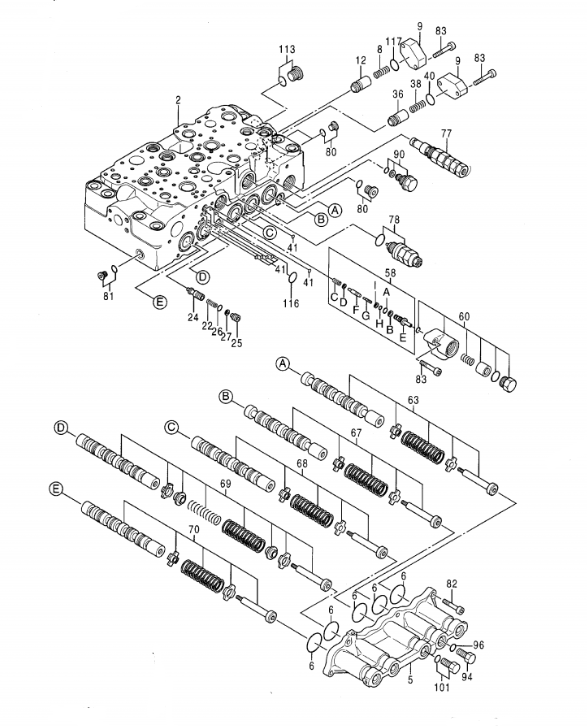

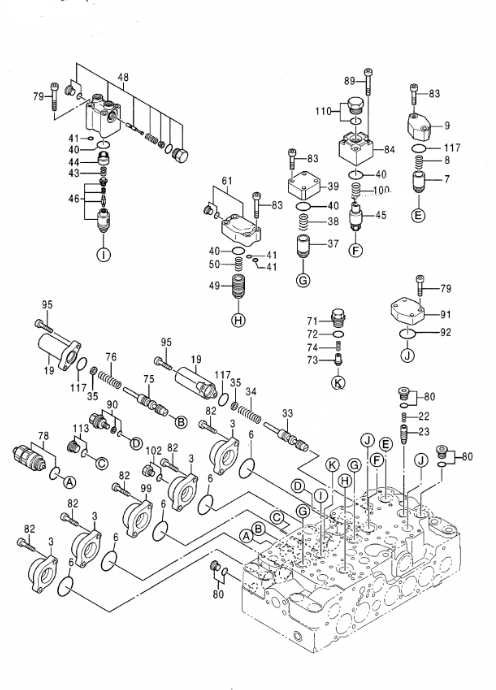

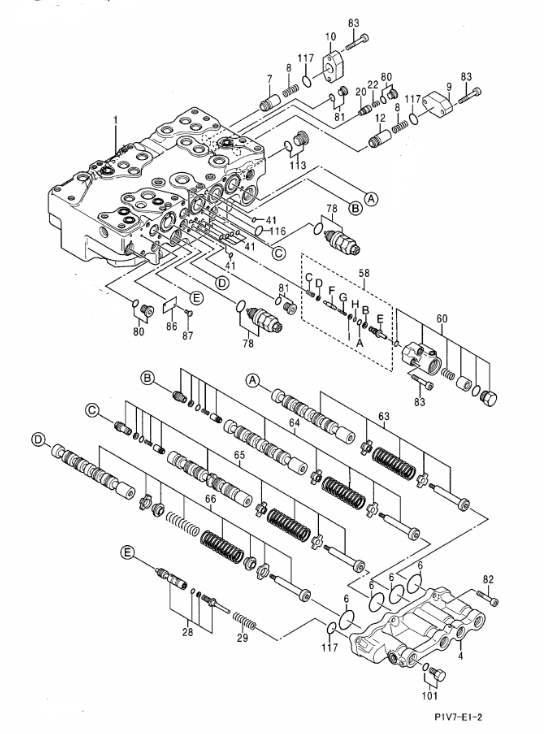

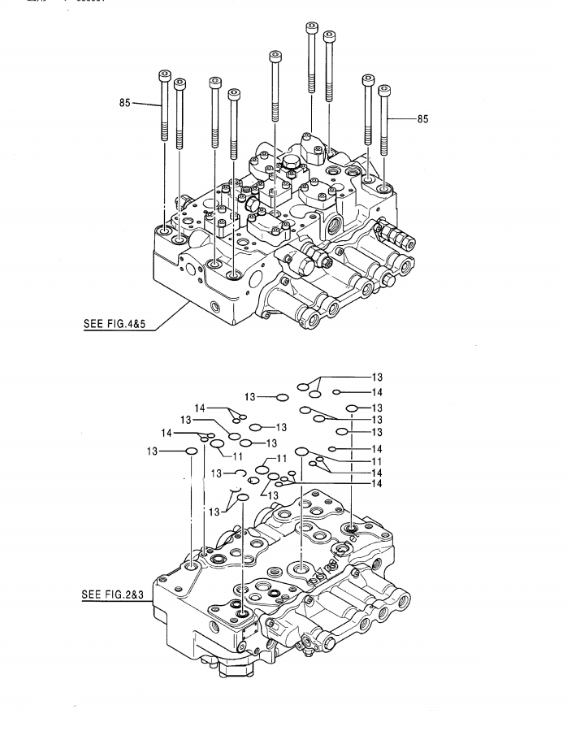

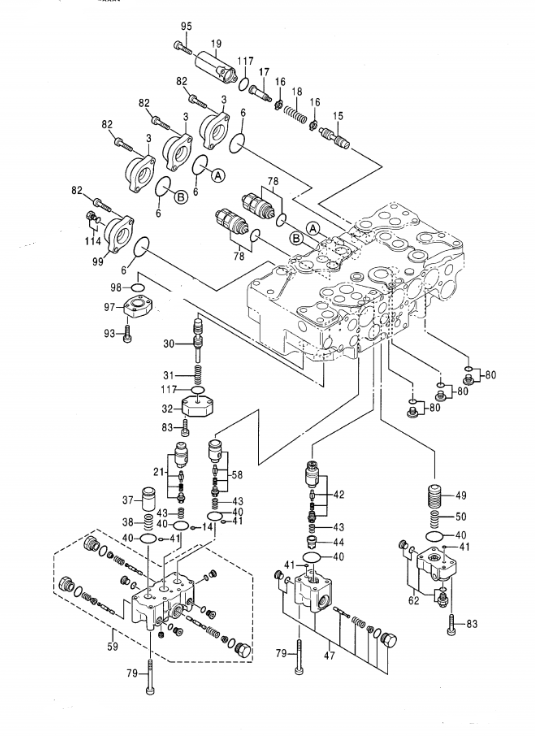

Parts scheme
List of spare parts
| # | Part No | Part Name | Qty. | Remark |
| 0 | 4625137 | VALVE; CONTROL | 1 | |
| 1 | | . HOUSING | 1 | |
| 2 | | . HOUSING | 1 | |
| 3 | 791801 | . CAP | 3 | |
| 4 | 976702 | . CAP | 1 | |
| 5 | 976901 | . CAP ASS'Y | 1 | |
| 6 | A811045 | . O-RING | 4 | |
| 7 | 668111 | . POPPET | 1 | |
| 8 | 668112 | . SPRING | 2 | |
| 9 | 791601 | . FLANGE | 1 | |
| 10 | 792001 | . FLANGE | 1 | |
| 11 | 976601 | . O-RING | 3 | |
| 12 | 792002 | . POPPET | 1 | |
| 13 | 976602 | . O-RING | 16 | |
| 14 | 4506320 | . O-RING | 2 | |
| 15 | | . SPOOL | 1 | |
| 16 | 332904 | . SEAT; SPRING | 2 | |
| 17 | 735807 | . END; SPOOL | 1 | |
| 18 | 791902 | . SPRING | 1 | |
| 19 | 791803 | . CAP | 2 | |
| 20 | 976703 | . POPPET | 1 | |
| 21 | 976801 | . POPPET ASS'Y | 1 | |
| 22 | 668007 | . SPRING | 1 | |
| 23 | 791602 | . POPPET | 1 | |
| 24 | 791804 | . POPPET | 1 | |
| 25 | 791805 | . SPACER | 1 | |
| 26 | 971823 | . O-RING | 1 | |
| 27 | 332924 | . RING; BACK-UP | 1 | |
| 28 | | . SPOOL ASS'Y | 1 | |
| 29 | 791914 | . SPRING | 1 | |
| 30 | | . SPOOL | 1 | |
| 31 | 976802 | . SPRING | 1 | |
| 32 | 791702 | . FLANGE | 1 | |
| 33 | | . SPOOL | 1 | |
| 34 | 791817 | . SPRING | 1 | |
| 35 | 791807 | . WASHER | 2 | |
| 36 | 792006 | . POPPET | 1 | |
| 37 | 791603 | . POPPET | 2 | |
| 38 | 791604 | . SPRING | 1 | |
| 39 | 791605 | . FLANGE | 2 | |
| 40 | 985098 | . O-RING | 5 | |
| 41 | 4506406 | . O-RING | 4 | |
| 42 | 976803 | . POPPET ASS'Y | 1 | |
| 43 | 791606 | . SPRING | 1 | |
| 44 | 791607 | . SPACER | 1 | |
| 45 | 977001 | . POPPET | 1 | |
| 46 | 977002 | . POPPET ASS'Y | 1 | |
| 47 | 976804 | . BODY ASS'Y | 1 | |
| 48 | 977003 | . BODY ASS'Y | 1 | |
| 49 | 791619 | . POPPET | 1 | |
| 50 | 791620 | . SPRING | 1 | |
| 58 | 976805 | . POPPET ASS'Y | 1 | |
| 59 | 976806 | . BODY ASS'Y | 1 | |
| 60 | 976704 | . BODY ASS'Y | 1 | |
| 61 | 977004 | . BODY ASS'Y | 1 | |
| 62 | 976807 | . BODY ASS'Y | 1 | |
| 63 | | . SPOOL | 1 | |
| 64 | | . SPOOL | 1 | |
| 65 | | . SPOOL | 1 | |
| 66 | | . SPOOL | 1 | |
| 67 | | . SPOOL ASS'Y | 1 | |
| 68 | | . SPOOL ASS'Y | 1 | |
| 69 | | . SPOOL ASS'Y | 1 | |
| 70 | | . SPOOL ASS'Y | 1 | |
| 71 | 714504 | . PLUG | 1 | |
| 72 | 4506418 | . O-RING | 1 | |
| 73 | 714503 | . POPPET | 1 | |
| 74 | 225209 | . SPRING | 1 | |
| 75 | | . SPOOL | 1 | |
| 76 | 977204 | . SPRING | 1 | |
| 77 | 4654860 | . VALVE; RELIEF | 1 | |
| 78 | 4372039 | . VALVE; RELIEF | 1 | |
| 79 | 791622 | . BOLT; SOCKET | 4 | |
| 80 | 695007 | . PLUG ASS'Y | 3 | |
| 81 | 689405 | . PLUG ASS'Y | 1 | |
| 82 | 459541 | . BOLT; SOCKET | 8 | |
| 83 | 413909 | . BOLT; SOCKET | 22 | |
| 84 | 977006 | . FLANGE | 1 | |
| 85 | 792007 | . BOLT; SOCKET | 9 | |
| 86 | | . NAME-PLATE | 1 | |
| 87 | | . SCREW; DRIVE | 2 | |
| 89 | 977007 | . BOLT; SOCKET | 4 | |
| 90 | 667927 | . PLUG ASS'Y | 1 | |
| 91 | 667726 | . CAP | 2 | |
| 92 | 886201 | . O-RING | 2 | |
| 93 | 413619 | . BOLT; SOCKET | 4 | |
| 94 | 667931 | . PLUG | 1 | |
| 95 | 455002 | . BOLT; SOCKET | 2 | |
| 96 | 4509180 | . O-RING | 1 | |
| 97 | 413712 | . CAP | 1 | |
| 98 | 224422 | . O-RING | 1 | |
| 99 | 791816 | . CAP | 1 | |
| 100 | 977005 | . SPRING | 1 | |
| 101 | 309732 | . PLUG ASS'Y | 1 | |
| 102 | 218607 | . PLUG ASS'Y | 1 | |
| 110 | 667719 | . PLUG ASS'Y | 1 | |
| 113 | 668108 | . PLUG ASS'Y | 1 | |
| 114 | 309731 | . PLUG | 1 | |
| 116 | 792003 | . O-RING | 1 | |
| 117 | 4226446 | . O-RING | 2 | |
| 58A | 971823 | .. O-RING | 1 | |
| 58B | 332924 | .. RING; BACK-UP | 1 | |
| 58C | 791808 | .. SPRING | 1 | |
| 58D | 791809 | .. SEAT; SPRING | 1 | |
| 58E | | .. SLEEVE | 1 | |
| 58F | | .. POPPET | 1 | |
| 58G | | .. SPOOL | 1 | |
| 58H | 4140436 | .. O-RING | 1 | |
| 58I | 4105067 | .. RING; BACK-UP | 1 | |
| | | | | |
| | 4625137 | VALVE; CONTROL (1/5) | 1 | |
| | | | | |
| | 4625137 | VALVE; CONTROL (2/5) | 1 | |
| | | | | |
| | 4625137 | VALVE; CONTROL (3/5) | 1 | |
| | | | | |
| | 4625137 | VALVE; CONTROL (4/5) | 1 | |
| | | | | |
| | 4625137 | VALVE; CONTROL (5/5) | 1 | |
Product Description
| Appliion | Hitachi Excavator |
| Quality | High Guarantee |
| Model | ZX350LC-3 |
| Package | Standard Packing at Normal |
| Warranty | 1 Year |
| Payment term | T/T,, PayPal, Trade Assurance |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express or as required
|
FAQ
1 . If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2 . What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.The genuine parts we don't have the warranty of it,but just can make sure it is 100% genuine.
3 . How can I pay the order?
You can finish the payment by T/T,Western Union,Paypal etc.
4 . When will get the items after I place order?
Once we received your payment , we will arrange the shipment within 24 hours ; if don't have stock , we will tell you before payment .
5 . How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item.
6 . What is your main products ?
Our pain product is final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts . If you need any parts for crawler excavator , you can ask us too . We will try our best to meet your requirement.
