Belparts Travel Gearbox for E330D2 Excavator Final drive toothbox 515-0073

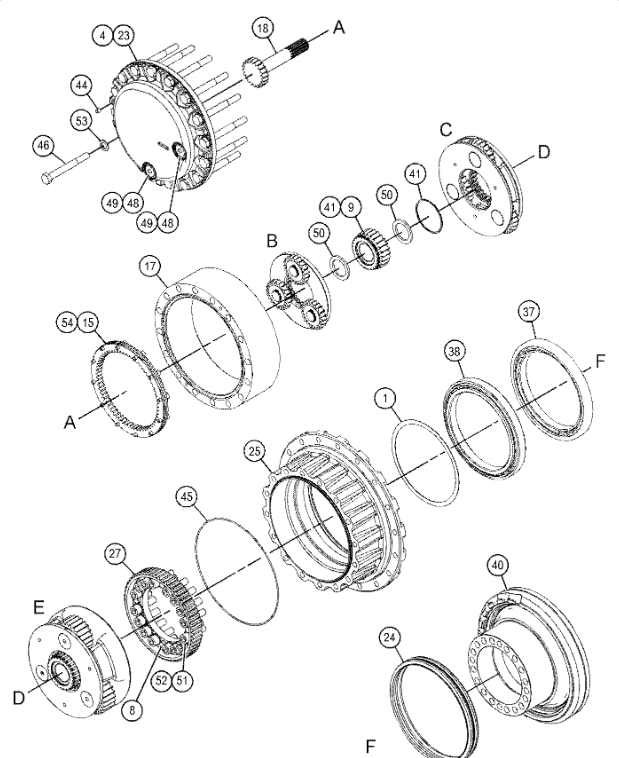

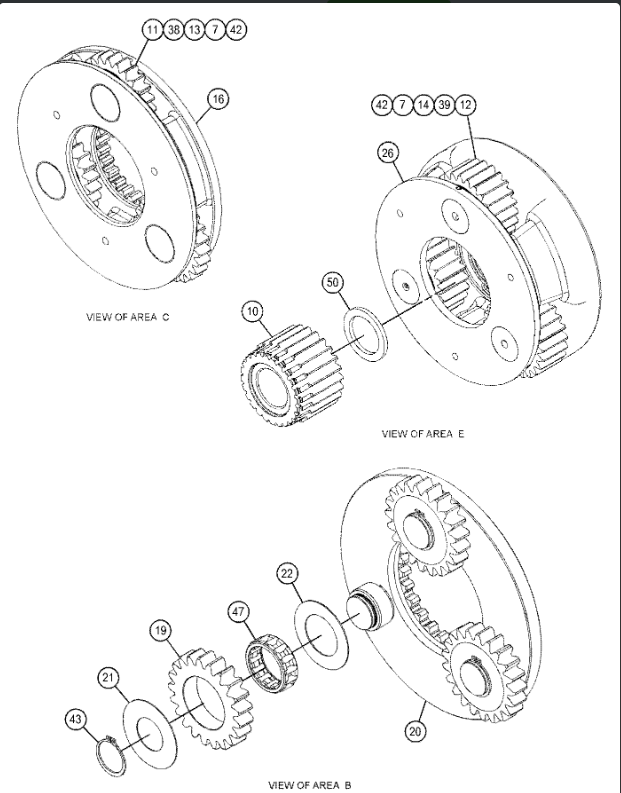

Parts scheme
List of spare parts
| Pos. | Part No | Qty | Parts name | Remark |
| 1. | 7Y-0752 B | [1] | SHIM (0.8-MM THK) | |
| | 7Y-0753 B | [1] | SHIM (1-MM THK) | |
| | 7Y-0754 B | [1] | SHIM (1.6-MM THK) | |
| | 267-6863 B | [1] | SHIM (0.75-MM THK) | |
| | 267-6864 B | [1] | SHIM (0.85-MM THK) | |
| | 267-6865 B | [1] | SHIM (0.9-MM THK) | |
| | 267-6866 B | [1] | SHIM (0.95-MM THK) | |
| | 267-6867 B | [1] | SHIM (1.2-MM THK) | |
| | 267-6868 B | [1] | SHIM (1.4-MM THK) | |
| | 267-6869 B | [1] | SHIM (1.8-MM THK) | |
| | 267-6870 B | [1] | SHIM (2-MM THK) | |
| | 267-6871 B | [1] | SHIM (2.3-MM THK) | |
| 4. | 094-0578 B | [1] | PLATE (8-MM THK) | |
| | 094-0579 B | [1] | PLATE (9-MM THK) | |
| | 094-0580 B | [1] | PLATE (10-MM THK) | |
| 7. | 094-1528 | [12] | WASHER (53X84X1-MM THK) | |
| 8. | 114-1540 | [4] | PIN-DOWEL | |
| 9. | 169-5589 | [1] | GEAR-SUN (24-TEETH) | |
| 10. | 169-5590 | [1] | GEAR-SUN (24-TEETH) | |
| 11. | 169-5592 | [3] | GEAR-PLANETARY (23-TEETH) | |
| 12. | 169-5593 | [3] | GEAR-PLANETARY (23-TEETH) | |
| 13. | 169-5601 | [3] | SHAFT-PLANETARY | |
| 14. | 169-5602 | [3] | SHAFT-PLANETARY | |
| 15. | 171-9387 | [1] | GEAR-RING (64-TEETH) | |
| 16. | 191-2571 | [1] | CARRIER-PLANETARY | |
| 17. | 191-2676 | [1] | GEAR-RING (72-TEETH) | |
| 18. | 191-2683 | [1] | GEAR-SUN (20-TEETH) | |
| 19. | 191-2684 | [3] | GEAR-PLANETARY (21-TEETH) | |
| 20. | 191-2686 | [1] | CARRIER AS | |
| 21. | 191-2689 | [3] | WASHER (34X70X1-MM THK) | |
| 22. | 191-2690 | [3] | WASHER (42.3X70X1-MM THK) | |
| 23. | 199-4503 | [1] | COVER | |
| 24. | 207-1571 | [1] | SEAL GP-DUO-CONE | |
| | 214-3570 | [2] | RING-TORIC | |
| 25. | 267-6798 | [1] | HOUSING | |
| 26. | 267-6799 | [1] | CARRIER-PLANETARY | |
| 27. | 267-6800 | [1] | GEAR-COUPLING | |
| 37. | 333-2914 | [2] | BALL BEARING | |
| 38. | 333-2916 | [3] | BEARING AS | |
| 39. | 333-2917 | [6] | BEARING AS | |
| 40. | 452-3516 | [1] | HOUSING-MOTOR | |
| 41. | 093-1731 | [2] | RING-RETAINING | |
| 42. | 095-0891 | [6] | PIN-SPRING | |
| 43. | 096-0433 | [3] | RING-RETAINING | |
| 44. | 096-3216 M | [2] | SETSCREW-SOCKET (M12X1.75X12-MM) | |
| 45. | 171-9298 | [1] | SEAL-O-RING | |
| 46. | 179-8733 M | [16] | BOLT (M20X2.5X170-MM) | |
| 47. | 296-6248 | [3] | BEARING AS-ROLLER | |
| 48. | 3E-2338 | [2] | PLUG-PIPE | |
| 49. | 7M-8485 | [2] | SEAL-O-RING | |
| 50. | 7Y-0595 | [3] | SPACER (58X79.6X6-MM THK) | |
| 51. | 7Y-5217 M | [16] | BOLT-SOCKET HEAD (M20X2.5X70-MM) | |
| 52. | 8T-3282 | [16] | WASHER-HARD (22X35X3.5-MM THK) | |
| 53. | 451-2176 | [16] | WASHER-HARD (22X35X3.5-MM THK) | |
| 54. | 101-7404 M | [12] | BOLT-SOCKET HEAD (M10X1.5X30-MM) | |
| | | | |
| | 1U-8846 BF | | SEALANT-GASKET | |
| | B | | USE AS REQUIRED |
| | F | | NOT SHOWN |
| | M | | METRIC PART |
