Excavator Swing Gearbox Reduction R480LC-9S R520LC-9S Swing Gearbox 31QB-10141 For HYUNDAI

Product Categories
GZ Yuexiang Engineering Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Excavator Swing Gearbox Reduction R480LC-9S R520LC-9S Swing Gearbox 31QB-10141 For HYUNDAI

Brand Name : Belparts

Model Number : R480LC-9S R520LC-9S

Certifiion : OEM

Place of Origin : China

MOQ : 1pcs

Price : Negotiable Price

Payment Terms : L/C, T/T, Paypal, Trade Assurance

Supply Ability : 1000 pieces/month

Delivery Time : 2-3 days

Packaging Details : Standard Shipping Package

Model : R480LC-9S R520LC-9S

part number : 31QB-10141

Product name : excav swing gearbox

Packing size : 46*70*40

Weight : 190KG

Brand : hyundai

Contact Now

Excavator swing gearbox reduction R480LC-9S R520LC-9S swing gearbox 31QB-10141 for HYUNDAI



Production Description



Product Name
Swing gearbox
Model
R480LC-9S R520LC-9S
Part number
31QB-10141
Packing size
46*70*40
Weight
190KG
Brand
Hyundai
Delivery Terms
After payment 3-7days

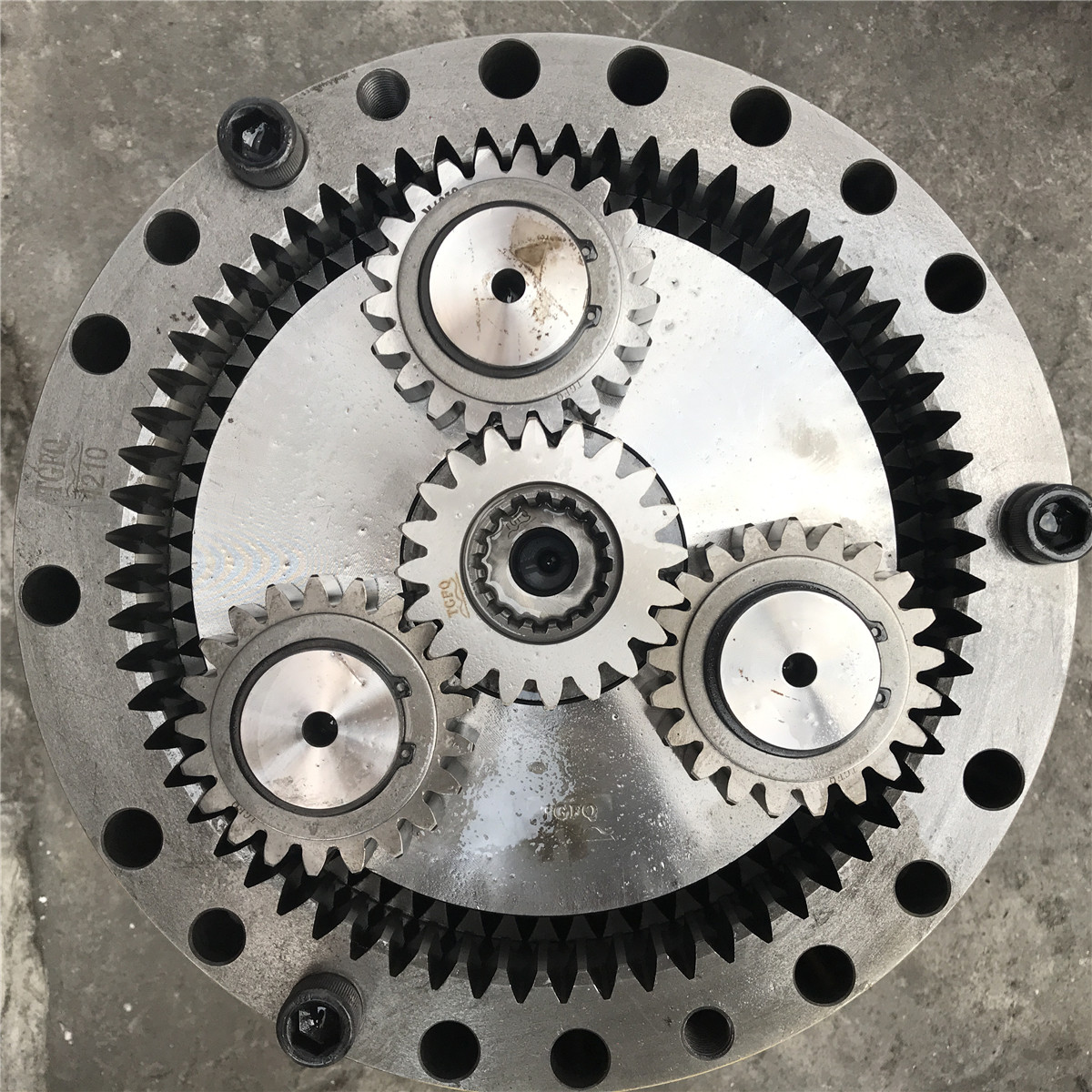

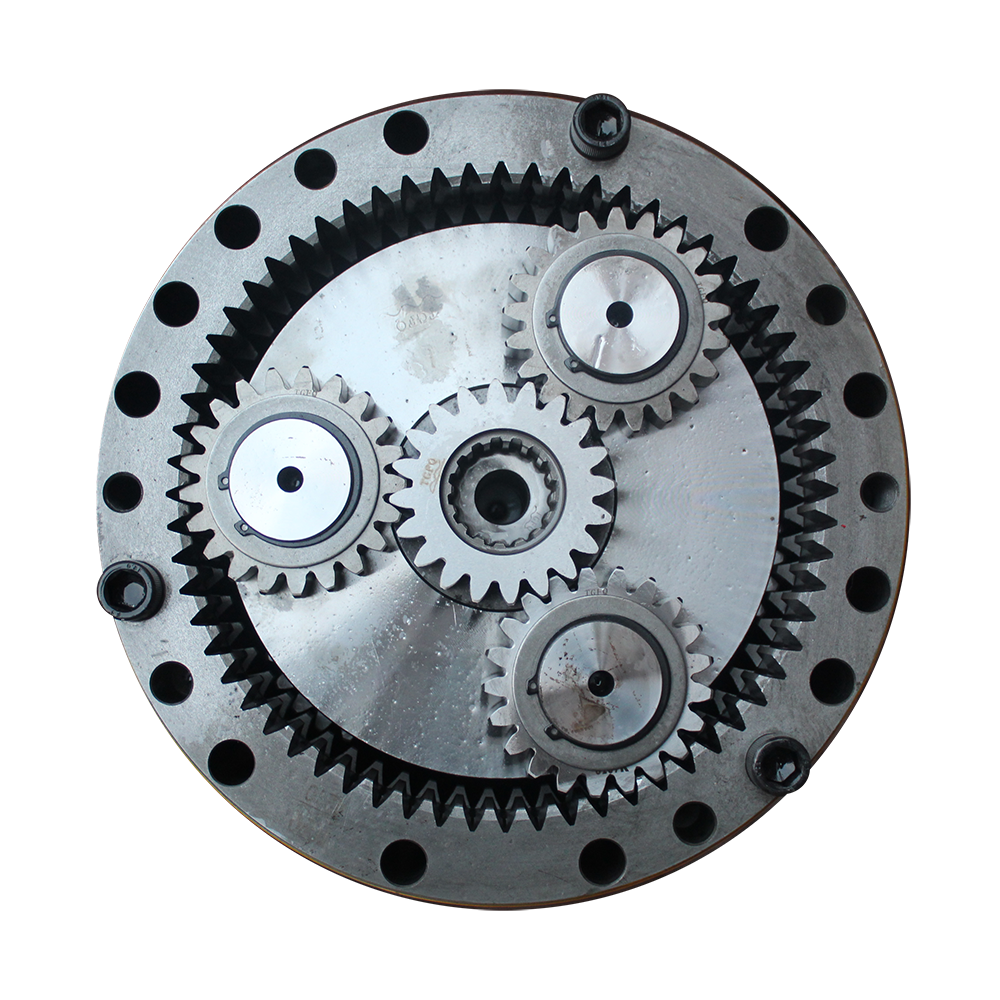

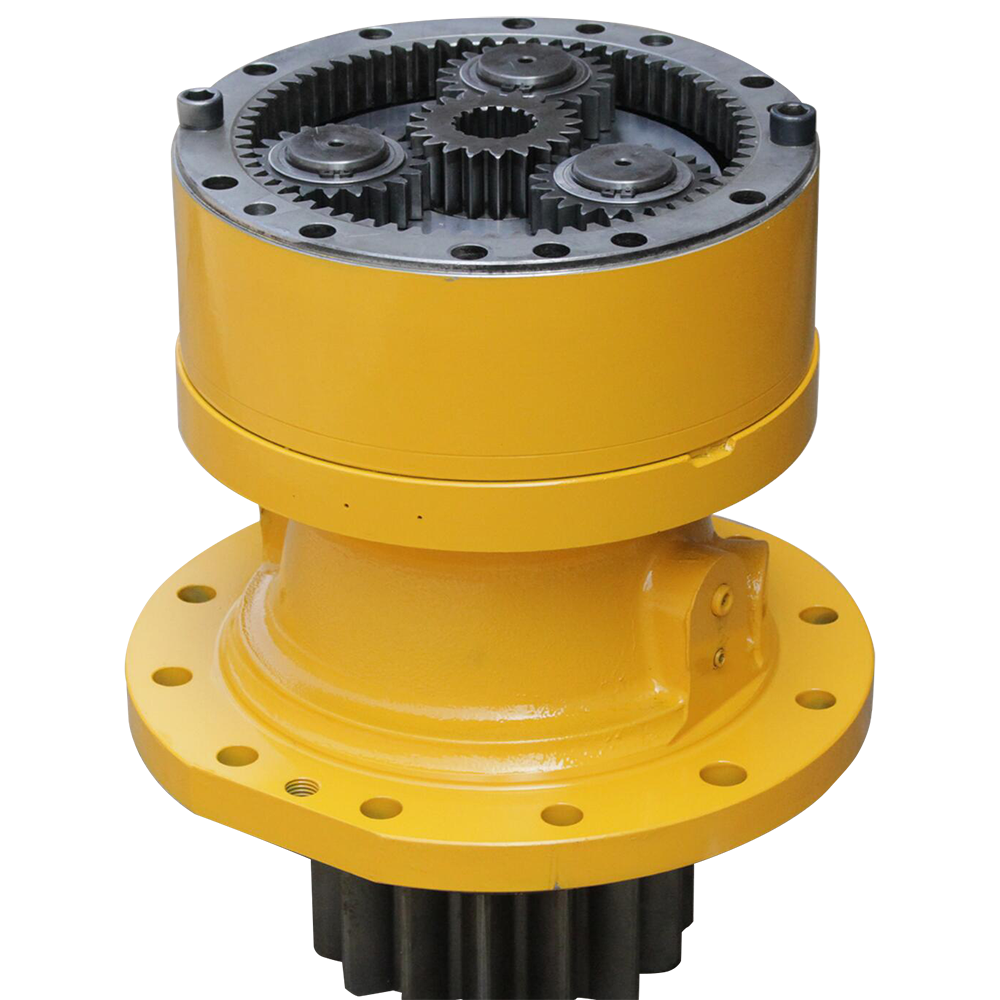

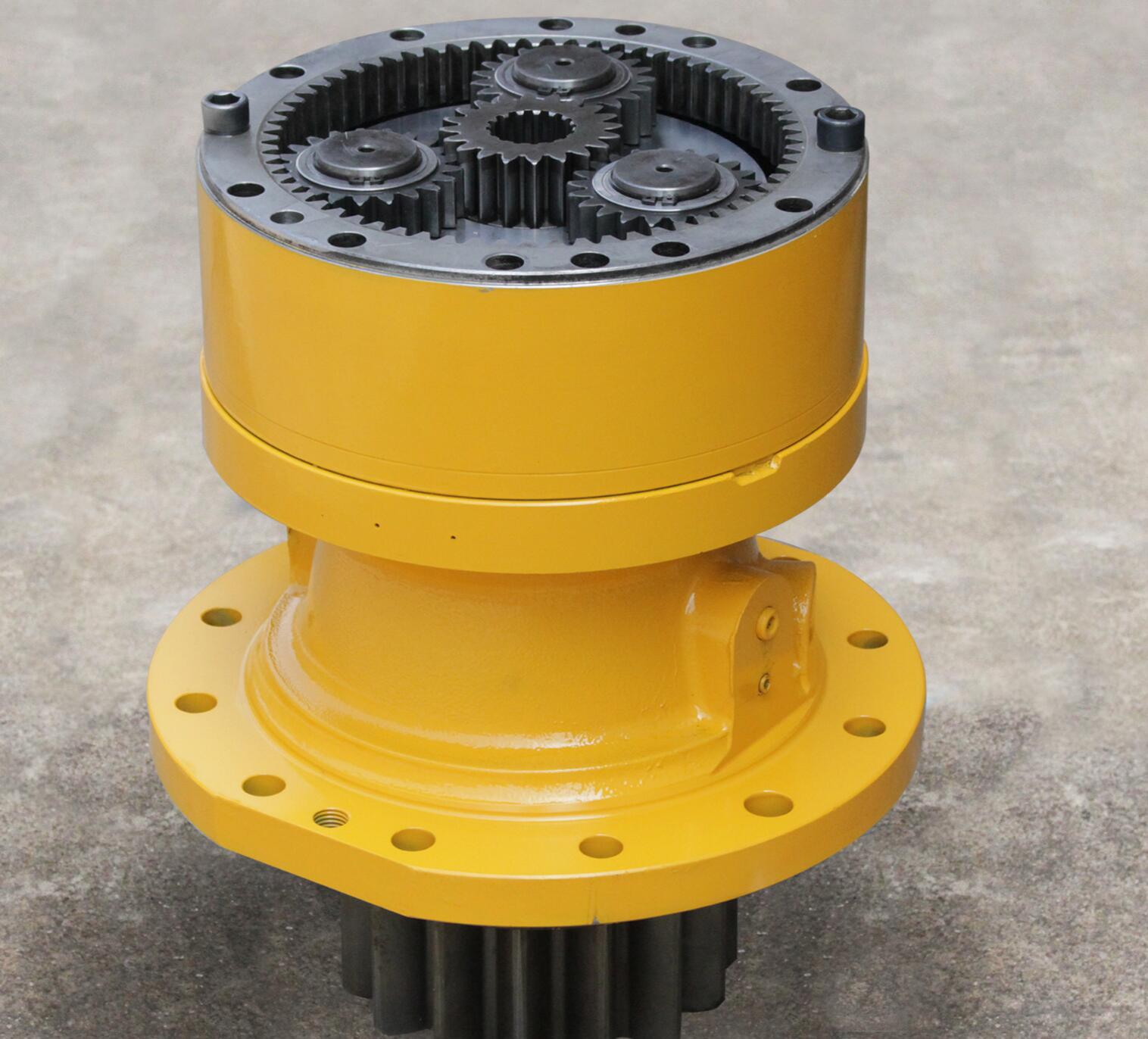

Detail Image



Excavator Swing Gearbox Reduction R480LC-9S R520LC-9S Swing Gearbox 31QB-10141 For HYUNDAIExcavator Swing Gearbox Reduction R480LC-9S R520LC-9S Swing Gearbox 31QB-10141 For HYUNDAIExcavator Swing Gearbox Reduction R480LC-9S R520LC-9S Swing Gearbox 31QB-10141 For HYUNDAI

Excavator Swing Gearbox Reduction R480LC-9S R520LC-9S Swing Gearbox 31QB-10141 For HYUNDAI

Excavator Swing Gearbox Reduction R480LC-9S R520LC-9S Swing Gearbox 31QB-10141 For HYUNDAI

Excavator Swing Gearbox Reduction R480LC-9S R520LC-9S Swing Gearbox 31QB-10141 For HYUNDAI

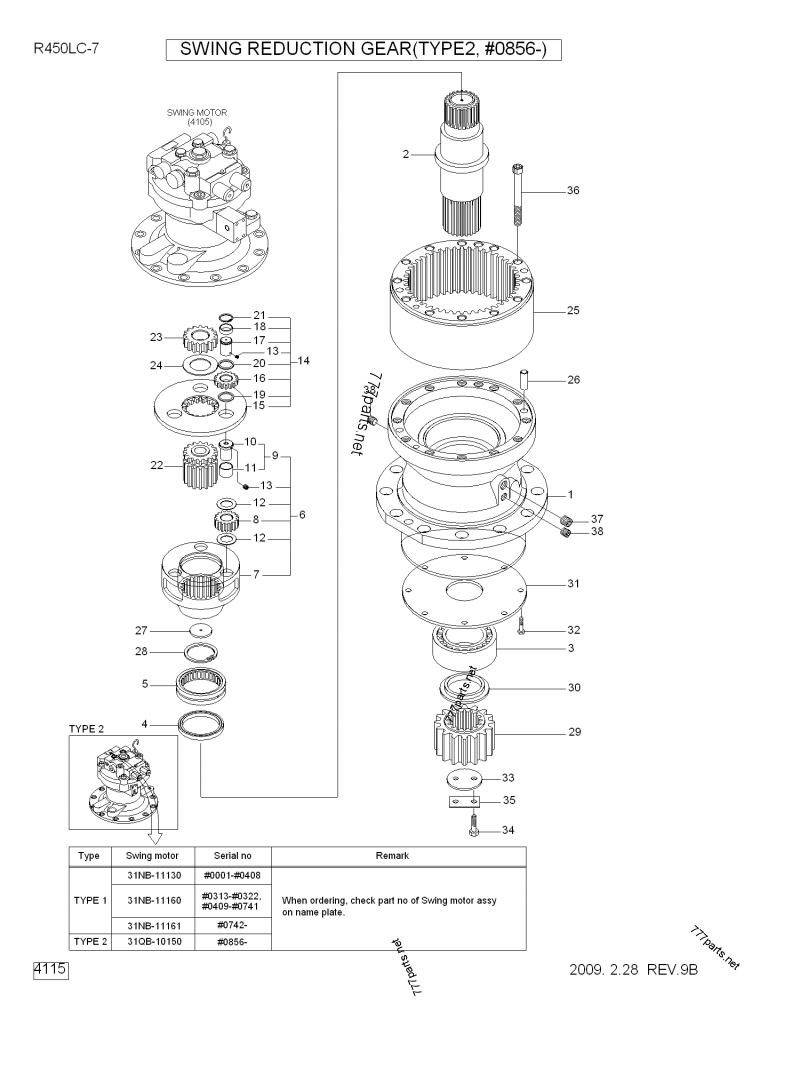

List of spare parts

# Part No Part Name Qty. Price request
*-2 31QB-10140 SWING REDUCTION GEAR 1
1 XKAQ-00637 CASING 1
2 XKAQ-00752 SHAFT-DRIVE 1
3 XKAQ-00026 BEARING-ROLLER 1
4 XKAQ-00032 SEAL-OIL 1
5 XKAQ-00029 BEARING-ROLLER 1
6 XKAQ-00753 CARRIER ASSY 2 1
7 XKAQ-00075 CARRIER-2 1
8 XKAQ-00023 GEAR-PLANET 2 3
9 XKAQ-00643 PIN ASSY 2 3
10 XKAQ-00070 PIN & BUSHING 1
N11 XKAQ-00291 BUSHING 2 1
12 XKAQ-00644 WASHER-THRUST 6
13 XKAQ-00048 PIN-SPRING 6
14 XKAQ-00754 CARRIER ASSY 1
INCL 13		 1
15 XKAQ-00531 CARRIER 1 1
16 XKAQ-00646 PLANET GEAR 1 3
17 XKAQ-00415 PIN 1 3
18 XKAQ-00030 CAGE-NEEDLE 3
19 XKAQ-00417 PLATE-SIDE 1 3
20 XKAQ-00416 PLATE-SIDE 2 3
21 XKAQ-00041 RING-STOP 3
22 XKAQ-00755 GEAR-SUN 2 1
23 XKAQ-00648 GEAR-SUN 1 1
24 XKAQ-00534 PLATE-SIDE 3 1
25 XKAQ-00649 GEAR-RING 1
26 XKAQ-00072 PIN-KNOCK 2
27 XKAQ-00404 PLATE-THRUST 1
28 XKAQ-00074 RING-STOP 1
29 XKAQ-00287 GEAR-PINION 1
30 XKAQ-00018 SPACER 1
31 XKAQ-00031 PLATE-COVER 1
32 XKAQ-00064 BOLT-HEX 8
33 XKAQ-00043 PLATE-LOCK 1
34 XKAQ-00042 BOLT-HEX 2
35 XKAQ-00029 BEARING-ROLLER 1
36 XKAQ-00065 BOLT-SOCKET 12
37 XKAQ-00049 PLUG-PRESSURE 1
38 XKAQ-00274 PLUG 2
