Hyundai R250 SC210 Planetary Gear Parts XKAQ-00197 Travel Gearbox 1st Carrier

Product Categories
GZ Yuexiang Engineering Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Hyundai R250 SC210 Planetary Gear Parts XKAQ-00197 Travel Gearbox 1st Carrier

Brand Name : Belparts

Model Number : R250LC-7 R260LC-9A R300LC-7 R330LC-9S

Certifiion : OEM

Place of Origin : China

MOQ : 1PC

Price : Negotiated price

Payment Terms : T/T, trade assurance,,Paypal

Supply Ability : 1000 pieces per month

Delivery Time : Within 2 working days

Packaging Details : Wooden /Carton/Standard shipping package

Product name : planetary gear

Machine moldel : R250LC-7 R260LC-9A R300LC-7 R330LC-9S

Part number : XKAQ-00400 XKAQ-00197

Quality : After market

MOQ : 1PC

Warranty : 3 months

Contact Now

Hyundai R250 SC210 Planetary Gear Parts XKAQ-00197 Travel Gearbox 1st Carrier

Description



Appliion Excavator
Part name Travel Gearbox 1st Carrier
Model Hyundai
Model R250LC-7 R260LC-9A R300LC-7 R330LC-9S
MOQ 1PC
Warranty 3 months
Part number XKAQ-00197 XKAQ-00400
Delivery Time Within 2 days after receiving the payment

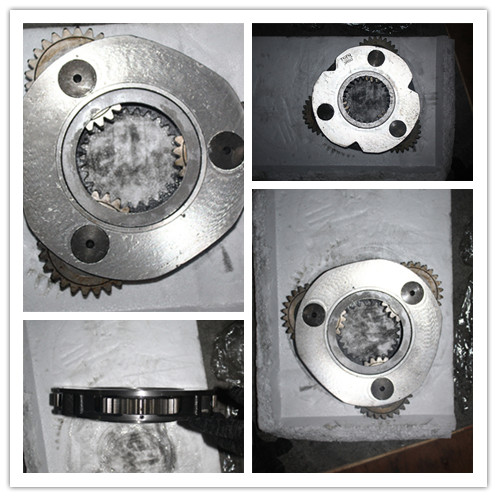

Pictures

Hyundai R250 SC210 Planetary Gear Parts XKAQ-00197 Travel Gearbox 1st Carrier
Drawing of the planrtary gear

Hyundai R250 SC210 Planetary Gear Parts XKAQ-00197 Travel Gearbox 1st Carrier

Parts on group travel reduction gear

Pos. Part No Qty Parts name Comments
*-2. 31N8-40070 [1] T/REDUCTION GEAR
*-2. 31N8-40071 [1] T/REDUCTION GEAR
*-2. 31N8-40071BG [1] T/REDUCTION GEAR
*-2. 31N8-40072 [1] T/REDUCTION GEAR
*-2. 31N8-40073 [1] T/REDUCTION GEAR
*-2. 31N8-40074 [1] T/REDUCTION GEAR
2. XKAQ-00173 [1] SEAL-FLOATING
2. XKAQ-00803 [1] SEAL-FLOATING
3. XKAQ-00174 [1] HOUSING
3. XKAQ-00802 [1] HOUSING
4. XKAQ-00175 [2] BEARING-ANGULAR
4. XKAQ-00175-AS [2] BEARING-ANGULAR FOR AS ONLY
5. XKAQ-00176 [1] SHIM STD
5. XKAQ-00992 [1] SHIM 0.5T
5. XKAQ-00993 [1] SHIM 0.9T
5. XKAQ-00994 [1] SHIM 1.0T
5. XKAQ-00995 [1] SHIM 1.2T
6. XKAQ-00177 [1] RETAINER
7. XKAQ-00178 [17] BOLT-WRENCH
8. XKAQ-00179 [1] CARRIER ASSY-NO.3
8. XKAQ-00398 [1] CARRIER 3 ASSY
8. XKAQ-00965 [1] CARRIER 3 ASSY
8-1. XKAQ-00180 [1] CARRIER-NO.3
8-1. XKAQ-00396 [1] CARRIER 3
8-1. XKAQ-00966 [1] CARRIER 3
8-2. XKAQ-00181 [4] GEAR-PLANETARY NO.3
8-2. XKAQ-00389 [4] GEAR 3-PLANETARY
8-3. XKAQ-00182 [72] NEEDLE-NO.3
8-3. XKAQ-00390 [72] NEEDLE 3
8-4. XKAQ-00183 [8] WASHER-THRUST NO.3
8-4. XKAQ-00391 [8] WASHER 3-THRUST
8-5. XKAQ-00184 [4] PIN 3
8-6. XKAQ-00185 [4] PIN 3-SPRING
8-6. XKAQ-00967 [4] PIN 3-SPRING
8-7. XKAQ-00186 [1] GEAR 3-SUN
8-8. XKAQ-00187 [1] RING 3-SNAP
8-9. XKAQ-00651 [4] PIN 3-SPRING
8-9. XKAQ-00968 [4] PIN 3-SPRING
9. XKAQ-00188 [1] CARRIER ASSY-NO.2
9. XKAQ-00399 [1] CARRIER ASSY 2
9. XKAQ-00969 [1] NO2 CARRIER ASS'Y
9-1. XKAQ-00189 [1] CARRIER-NO.2
9-1. XKAQ-00397 [1] CARRIER 2
9-1. XKAQ-00970 [1] NO2 CARRIER
9-2. XKAQ-00190 [3] GEAR-PLANETARY NO.2
9-2. XKAQ-00392 [3] GEAR 2-PLANETERY
9-3. XKAQ-00191 [45] NEEDLE-NO.2
9-3. XKAQ-00393 [45] NEEDLE 2
9-4. XKAQ-00192 [6] WASHER-THRUST NO.2
9-4. XKAQ-00394 [6] WASHER 2-THRUST
9-5. XKAQ-00193 [3] PIN 2
9-6. XKAQ-00194 [6] PIN 2-SPRING
9-6. XKAQ-00971 [6] PIN 2-SPRING
9-7. XKAQ-00195 [1] GEAR 2-SUN
9-8. XKAQ-00196 [1] RING 2-SNAP
9-9. XKAQ-00650 [6] PIN 2-SRPING
10. XKAQ-00197 [1] CARRIER ASSY-NO.1
10. XKAQ-00400 [1] CARRIER 1 ASSY
10-1. XKAQ-00198 [1] CARRIER 1
10-2. XKAQ-00199 [3] GEAR 1-PLANETARY
10-3. XKAQ-00200 [3] BEARING-NEEDLE
10-4. XKAQ-00201 [6] WASHER-THRUST NO.1
10-4. XKAQ-00395 [6] WASHER 1-THRUST
10-5. XKAQ-00202 [3] PIN 1
11. XKAQ-00203 [1] GEAR 1-SUN
12. XKAQ-00204 [3] PLUG
13. XKAQ-00205 [4] PIN-LOCK
14. XKAQ-00206 [1] GEAR-RING
14. XKAQ-00762 [1] GEAR-RING
15. XKAQ-00207 [24] BOLT-WRENCH
16. XKAQ-00208 [1] RING-THRUST
17. XKAQ-00209 [1] COVER
17. XKAQ-00973 [1] COVER
18. XKAQ-00210 [AR] RING 2-THRUST
19. XKAQ-00211 [16] BOLT-WRENCH
20. XKAQ-00212 [1] MOTOR-RING
21. XKAQ-00213 [1] RING 3-THRUST
22. XKAQ-00214 [1] PAD
23. XKAQ-00215 [1] COUPLING
24. XKAQ-00216 [1] NAME PLATE
N. @ [1] NOT SUPPLIED PARTS

FAQ



1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.



2.What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.



3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount), trade assurance.



4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.



5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.
