Hyundai R160 SC210 Planetary Gear Parts XKAQ-00242 Travel Gearbox 1st Sun Gear

Brand Name : Belparts

Model Number : R180LC-9 R180LC-9S R210NLC-7A R140LC-9

Certifiion : OEM

Place of Origin : China

MOQ : 1PC

Price : Negotiated price

Payment Terms : T/T, trade assurance,,Paypal

Supply Ability : 1000 pieces per month

Delivery Time : Within 2 working days

Packaging Details : Wooden /Carton/Standard shipping package

Product name : planetary gear

Machine moldel : R180LC-9 R180LC-9S R210NLC-7A R140LC-9

Part number : XKAQ-00242

Quality : After market

MOQ : 1PC

Warranty : 3 months

Contact Now

Hyundai R160 SC210 Planetary Gear Parts XKAQ-00242 Travel Gearbox 1st Sun Gear

Description



Appliion Excavator
Part name Travel Gearbox 1st Sun gear
Model Hyundai
Model R180LC-9 R180LC-9S R210NLC-7A R140LC-9
MOQ 1PC
Warranty 3 months
Part number XKAQ-00242
Delivery Time Within 2 days after receiving the payment

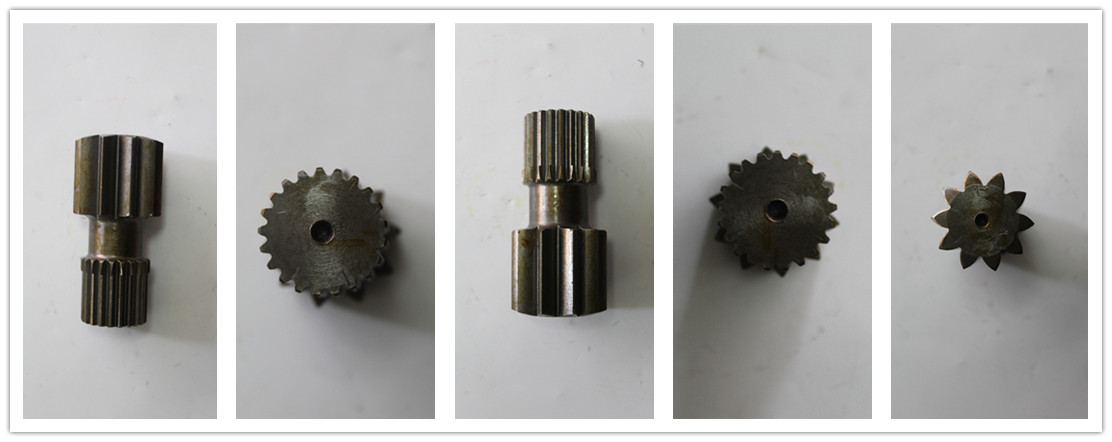

Pictures

Hyundai R160 SC210 Planetary Gear Parts XKAQ-00242 Travel Gearbox 1st Sun Gear

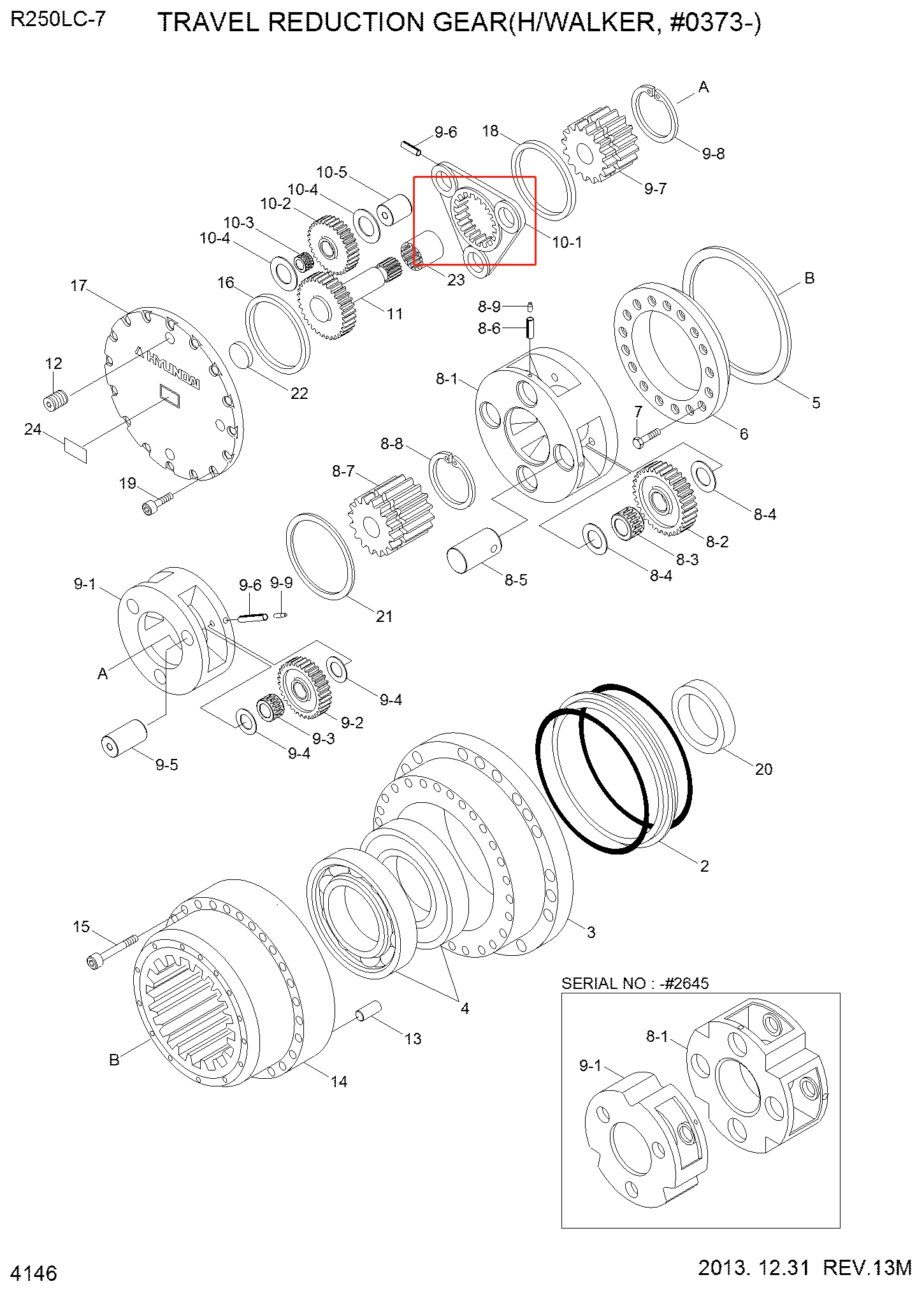

Drawing of the planrtary gear

Hyundai R160 SC210 Planetary Gear Parts XKAQ-00242 Travel Gearbox 1st Sun Gear

Parts on group travel reduction gear

Pos. Part No Qty Parts name Comments
*. @ [1] TRAVEL MOTOR ASSY SEE 4145
*-2. SBTR22-1-00-5 [1] Deleted...
N1. XKAQ-00217 [1] HOUSING
2. XKAQ-00218 [2] BEARING-MAIN
3. XKAQ-00219 [1] SEAL-FLOATING
4. XKAQ-00220 [1] SHIM
5. XKAQ-00221 [1] RETAINER
6. XKAQ-00222 [12] BOLT-HEX
7. XKAQ-00223 [2] PIN-PARALLEL
N8. XKAQ-00224 [1] GEAR-RING
9. XKAQ-00225 [1] COUPLING
10. XKAQ-00226 [1] CARRIER 2 ASSY
10-1. XKAQ-00227 [1] CARRIER 2
10-2. XKAQ-00228 [4] GEAR-PLANET 2
10-3. XKAQ-00229 [8] BEARING-NEEDLE 2
10-4. XKAQ-00230 [8] WASHER-THRUST
10-5. XKAQ-00231 [4] PIN 2
10-6. XKAQ-00232 [4] PIN-SPRING
10-7. XKAQ-00208 [2] RING-THRUST
11. XKAQ-00233 [1] CARRIER ASSY 1
11-1. XKAQ-00234 [1] CARRIER 1
11-2. XKAQ-00235 [1] GEAR-SUN 2
11-3. XKAQ-00236 [1] RING-RETAINING
11-4. XKAQ-00237 [3] GEAR-PLANET 1
11-5. XKAQ-00238 [3] BEARNG-NEEDLE 1
11-6. XKAQ-00239 [6] WASHER-THRUST
11-7. XKAQ-00240 [3] PIN 1
11-8. XKAQ-00241 [3] PIN-SPRING
11-9. XKAQ-00655 [1] PIN-SPRING
12. XKAQ-00242 [1] GEAR-SUN 1
13. XKAQ-00243 [1] COVER
14. XKAQ-00214 [1] PAD
15. XKAQ-00244 [20] BOLT-HEX SOCKET
16. XKAQ-00245 [2] SCREW-HEX SOCKET
17. XKAQ-00246 [3] PLUG-HYDRAULIC
18. XKAQ-00247 [3] O-RING
19. XKAQ-00248 [1] NAME PLATE
N. @ [AR] NOT SUPPLIED PARTS



FAQ

1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.



2.What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.



3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount), trade assurance.



4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.



5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.
