R320LC-7 Final Drive 31N8-12010 31N9-10132 For Hyundai Travel Motor Assy

Product Categories

GZ Yuexiang Engineering Machinery Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: R320LC7 Final Drive 31N812010 31N910132 For Hyundai Travel Motor Assy
Brand: Belparts
Price: 1 USD

Brand Name : Belparts

Model Number : R320LC-7 R300LC-9S

Place of Origin : China

MOQ : 1PCS

Price : Negotiated price

Payment Terms : T/T, trade assurance,PayPal

Supply Ability : 1000PCS

Delivery Time : 1~7 days

Packaging Details : Wooden case

Model : R320LC-7 R300LC-9S

part number : 31N8-12010 31N8-12010

Part Name : Swing Motor

Application : Excavator parts

Packing : Wooden Case

Color : According to customer requirement

Machinery Test Report : Provided

After Warranty Service : Video Technical Support, Online Support

Contact Now

R320LC-7 final drive 31N8-12010 31N9-10132 for Hyundai travel motor assy

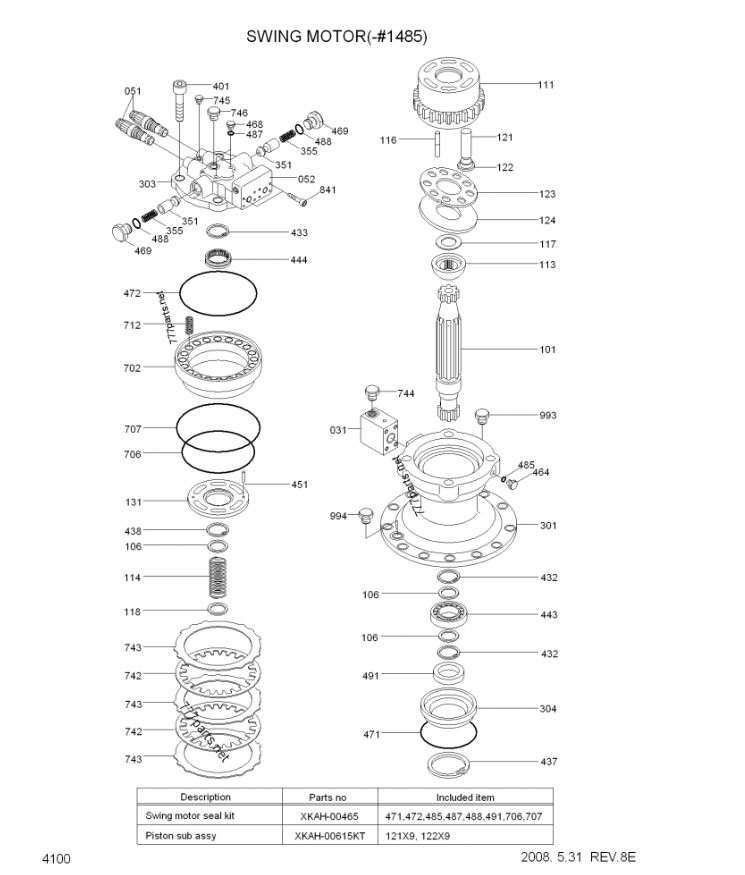

#	Part No	Part Name	Qty.
N*	31N9-10131	SWING MOTOR ASSY	1
N*	31N9-10132	SWING MOTOR ASSY	1
N*	31N9-10133	SWING MOTOR ASSY	1
*-1	31N8-12010	SWING MOTOR UNIT	1
031	XKAH-00121	VALVE-BRAKE	1
051	XKAH-00122	VALVE-RELIEF	2
052	XKAH-00115	BLOCK	1
101	XKAH-00162	SHAFT-DRIVE	1
106	XKAH-00161	SPACER	3
111	XKAH-00160	BLOCK-CYLINDER	1
113	XKAH-00159	BUSHING-SPHERICAL	1
114	XKAH-00158	SPRING	1
116	XKAH-00157	ROD-PUSH	12
117	XKAH-00156	SPACER F	1
118	XKAH-00155	SPACER R	1
NS121	XKAH-00154	PISTON	9
NS122	XKAH-00153	SHOE	9
123	XKAH-00152	RETAINER	1
124	XKAH-00151	PLATE-SHOE	1
131	XKAH-00150	PLATE-VALVE	1
301	XKAH-00149	CASING	1
303	XKAH-00546	CASING-VALVE	1
304	XKAH-00147	COVER-FRONT	1
304	XKAH-00930	COVER-FRONT	1
351	XKAH-00146	PLUNGER	2
355	XKAH-00145	SPRING	2
401	XKAH-00144	BOLT-SOCKET	4
432	XKAH-00143	RING-SNAP	2
433	XKAH-00142	RING-SNAP	1
437	XKAH-00141	RING-SNAP	1
438	XKAH-00140	RING-SNAP	1
443	XKAH-00139	BEARING-ROLLER	1
444	XKAH-00138	BEARING-ROLLER	1
451	XKAH-00137	PIN-SPRING	2
464	XKAH-00136	PLUG-VP	1
468	XKAH-00136	PLUG-VP	2
469	XKAH-00135	PLUG	2
K471	XKAH-00134	O-RING	1
K472	XKAH-00133	O-RING	1
K485	XKAH-00052	O-RING	1
K487	XKAH-00052	O-RING	2
K488	XKAH-00132	O-RING	2
K491	XKAH-00131	SEAL-OIL	1
K491	XKAH-00929	SEAL-OIL	1
702	XKAH-00130	PISTON-BRAKE	1
K706	XKAH-00129	O-RING	1
K707	XKAH-00128	O-RING	1
712	XKAH-00127	SPRING-BRAKE	20
742	XKAH-00126	PLATE-FRICTION	2
743	XKAH-00125	PLATE-SEPERATION	3
744	XKAH-00120	PLUG	2
745	XKAH-00119	PLUG	1
746	XKAH-00118	PLUG	1
841	XKAH-00114	BOLT-SOCKET	2
993	XKAH-00124	PLUG	1
994	XKAH-00123	PLUG	1
N*-2	31N9-10150	SWING REDUCTION GEAR SEE 4110, 4115	1
K	XKAH-00465	SEAL KIT SEE ILLUST	1
S	XKAH-00615KT	PISTON ASSY SEE ILLUST	1
N	@	FUEL INJECTION PIPE & NOZZLE	AR

R320LC-7 Final Drive 31N8-12010 31N9-10132 For Hyundai Travel Motor Assy
